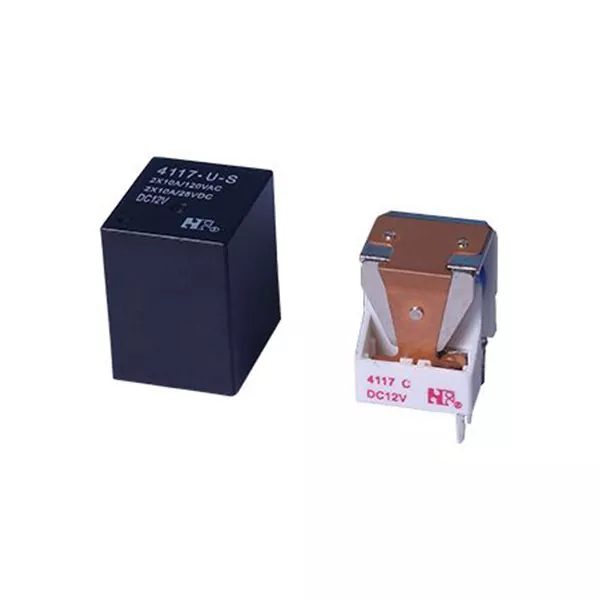

Superminiature, heavy power.
Low coil power consumption.
Switching current up to 20A.
PC board mounting.
Suitable for household appliances, electrical equipment, automation system, and automobile industry application.
1 Part number: 4117
2 Contact arrangement: A:1A;B:1B;C:1C;U:IU;V:1V;W:1W
3 Enclosure: S: Wash tight Z: Flux proof O: Unenclosed
4 Contact current: 10:10A 20:20A
5 Coil rated voltage(V): DC:3,5,6,9,12,18,24
6 Coil power: 1.0:1.0W 1.1:1.1W;1.2:1.2W
| Contact Arrangement |
1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M)) 1U(SPSTNODM) 1V(SPSTNCDB) 1W(SPDTNC-NO) |
|
| Contact Material | AgSnO2 AgNi | |
| Contact Rating (Resistive) |
1A,1B,1C: 10A/120VAC,28VDC 20A/14VDC 1U,1V,1W: 2×10A/120VAC,28VDC 2×20A/14VDC |
|
| Max. Switching Power |
1C: 280W 1200VA 1W: 2×280W 2×1200VA |
|
| Max. Switching Voltage |
30VDC 277VAC Max. Switching Current:20A |
|
| Voltage Drop(Initial) |
Typ. 50mV(at 10A) Item 4.12 of IEC 61810-7 |
|
|
Operation Life |
Electrical |
1×105 Item 4.30 of IEC 61810-7 |
| Mechanical |
1×107 Item 4.31 of IEC 61810-7 |
|
CAUTION:
1.For the intermediate current, it only applies to the room temperature.
2.For the open type relays, the min. Switching current and min. Switching voltage is 100mA/6VDC.
| Dash numbers | Coil voltage VDC |
Coil resistance Ω ±10% |
Pick-up voltage VDC(max) (75% of rated voltage ) | Drop-out voltage VDC(min) (10% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
| 003-1000 | 3 | 3.9 | 9 | 2.25 | 0.3 | 1.0 | ≤10 | ≤5 |
| 005-1000 | 5 | 6.5 | 25 | 3.75 | 0.5 | |||
| 006-1000 | 6 | 7.8 | 36 | 4.50 | 0.6 | |||
| 009-1000 | 9 | 11.7 | 85 | 6.75 | 0.9 | |||
| 012-1000 | 12 | 15.6 | 145 | 9.00 | 1.2 | |||
| 018-1000 | 18 | 23.4 | 324 | 13.5 | 1.8 | |||
| 024-1000 | 24 | 31.2 | 576 | 18.0 | 2.4 | |||
|
012-1100 024-1100 |
12 24 |
15.6 31.2 |
130.9 523.6 |
9.00 18.0 |
1.2 2.4 |
1.1 | ≤10 | ≤5 |
| 012-1200 | 12 | 15.6 | 120 | 9.00 | 1.2 | 1.2 | ≤10 | ≤5 |
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts | 50Hz 750V | Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 1500V | Item 4.9 of IEC 61810-7 |
| Shock Resistance | 98m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~40Hz Double amplitude 1.27mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃ ~ 105℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 9g (Unenclosed) 12g | Item 4.7 of IEC 61810-7 |
CAUTION:
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
