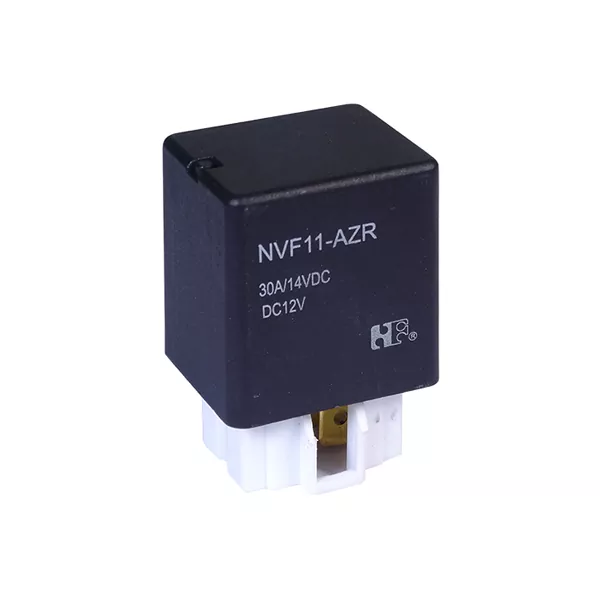

40A Switching Capabililty Automotive Relay

Model:NVF11

● High quality automotive relay
● 1 Form A contact arrangement
● Wide temperature range : -40°C to 105° C Plastic sealed and fluxed proofed types availalbe
● RoHS Compliant

CAD

Send Inquiry PDF DownLoad

Product Description

Features

Switching capacity up to 40A.

Direct inserting mounting.

Suitable for automation system and automobile auxiliary etc.

Ordering Information

1 Part number: NVF11 & NVF12

2 Contact arrangement: A:1A

3 Enclosure: S: Wash tight Z: Flux proof

4 Contact current: 30A/14VDC

5 Coil Voltage(VDC): 12,24

6 Coil transient suppression NIL:standard R:with resistor

Contact Data

Contact Arrangement		1A(SPSTNO)
Contact Material		AgSnO₂
Contact Rating (Resistive)		30A/14VDC
Max. Switching Power		420W
Max. Switching Voltage		30VDC	Max. Switching Current: 40A
Voltage Drop(Initial)		Typ. 50mV (at 10A)	Item 4.12 of IEC 61810-7
Operation Life	Electrical	1×10⁵	Item 4.30 of IEC 61810-7
	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC(max) (65% of rated voltage)	Drop-out voltage VDC(min) (8% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (65% of rated voltage)	Drop-out voltage VDC(min) (8% of rated voltage)	Coil power W	Operate time ms	Release time ms
012-1500	12	15.6	96	7.8	0.96	1.5	≤10	≤7
024-1500	24	31.2	384	15.6	1.92	1.5	≤10	≤7

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts	50Hz 500V	Item 4.9 of IEC 61810-7
Between Contact and Coil	50Hz 500V	Item 4.9 of IEC 61810-7
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10-55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40 ℃ ~105 ℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	35g(NVF11) 38g(NVF12)	Item 4.7 of IEC 61810-7

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
