Single and double coils magnet latching relay available.
Switching capacity up to 50A.
PC board mounting.

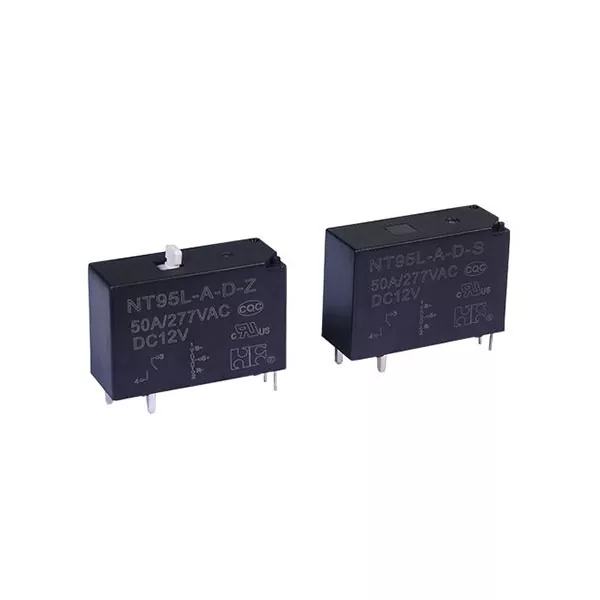

1 Part number: NT95L
2 Contact arrangement: A:1A
3 Coil: NIL:Single coil; D: Double coils
4 Enclosure: Z: Flux proof S Wash tight
5 Polarity Nil: standard; R: reverse polarity
6 Coil rated voltage(V): DC:6,9,12,24,48
| Contact Arrangement | 1A(SPSTNO) | |||
| Contact Material | AgSnO2 | |||
| Contact Rating (Resistive) |
50A/277VAC Motor Load:5HP 240VAC Incandescent Lamp 5000W 240VAC; Inductive:16A/277VAC |
|||
| Max. Switching Power | 13850VA | |||
| Max. Switching Voltage | 440VAC | Max. Switching Current :20A | ||
| Contact Resistance | ≤20mΩ | Item 4.12 of IEC 61810-7 | ||
| Operation | Electrical | 1×105 | Item 4.30 of IEC 61810-7 | |
| Life | Mechanical | 5×106 | Item 4.31 of IEC 61810-7 | |
CAUTION:
1.For the intermediate current(10mA/6VDC~100mA/28VDC), it only applies to the room temperature.
| Dash numbers | Rated voltage VDC |
Coil resistance Ω±10% |
Set/Reset voltage VDC (80% of rated voltage ) |
Pulse duration ms | Coil power W | Set time ms | Reset time ms |
| 1 Coil | |||||||
| 006-1500 | 6 | 24 | 4.8 | ≥50 | 1.5 | ≤15 | ≤15 |
| 009-1500 | 9 | 54 | 7.2 | ||||
| 012-1500 | 12 | 96 | 9.6 | ||||
| 024-1500 | 24 | 384 | 19.2 | ||||
| 048-1500 | 48 | 1536 | 38.4 | ||||
| 2 Coils | |||||||
| 006-3000 | 6 | 2×12 | 4.8 | ≥50 | 2×3.0 | ≤15 | ≤15 |
| 009-3000 | 9 | 2×27 | 7.2 | ||||
| 012-3000 | 12 | 2×48 | 9.6 | ||||
| 024-3000 | 24 | 2×192 | 19.2 | ||||
| 048-3000 | 48 | 2×768 | 38.4 | ||||
CAUTION:
1. When latching relays are installed in equipment, the latch and reset coil should not be powered simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to in be the magnetically neutral position .
2. Switching voltage is for test purpose only and are no to be used as design criteria.
| Insulation Resistance | 1000MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts | 50Hz 1500VAC | Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 4000V | Item 4.9 of IEC 61810-7 |
| Creepage Distance | 8.4mm | |
| Shock Resistance | Functional: 98m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Destructive: 980m/s² 11ms | ||
| Vibration Resistance | 10Hz~55Hz Double amplitude 1.5mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃~85℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 25g | Item 4.7 of IEC 61810-7 |
| Safety approval | UL&CUR | CQC |
| Load | 50A/277VAC | 50A/277VAC |
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
