Small size and light weight.
Heavy contact load (30A).

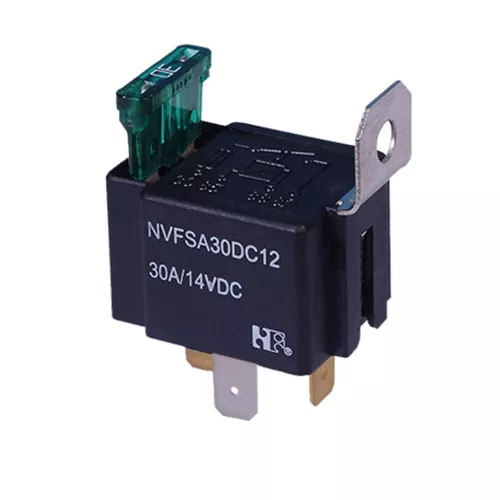

Blade fuse design.
Suitable for automobile and lamp accessories application.
Insert mounting ,With metal frame.
1 Part number: NVFS
2 Contact arrangement: A:1A
3 Contact rating: 15:15A/14VDC 30:30A/14VDC
4 Coil rated Voltage(V): DC: 6,12,24
| Contact Arrangement | 1A(SPSTNO) | |||
| Contact Material | AgSnO2 | |||
| Contact Rating (Resistive) | 15A 30A/14VDC | |||
| Max. Switching Power | 420W | |||
| Max. Switching Voltage | 30VDC | Max. Switching Current :30A | ||
| Voltage Drop(Intial) | Typ. 50mV (at 10A) | Item 4.12 of IEC 61810-7 | ||
| Operation | Electrical | 1×105 | Item 4.30 of IEC 61810-7 | |
| Life | Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC(max) (65%of rated voltage ) | Drop-out voltage VDC(min) (20% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
| 006-1800 | 6 | 7.8 | 20 | 3.9 | 1.2 | 1.8 | ≤7 | ≤5 |
| 012-1800 | 12 | 15.6 | 80 | 7.8 | 2.4 | |||
| 024-1800 | 24 | 31.2 | 320 | 15.6 | 4.8 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength | ||
| Between Open Contacts | 50Hz 500V | Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 750V | Item 4.9 of IEC 61810-7 |
| Shock Resistance | 147m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~40Hz Double amplitude 1.27mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 100N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40 ℃ ~105 ℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 32g | Item 4.7 of IEC 61810-7 |
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
