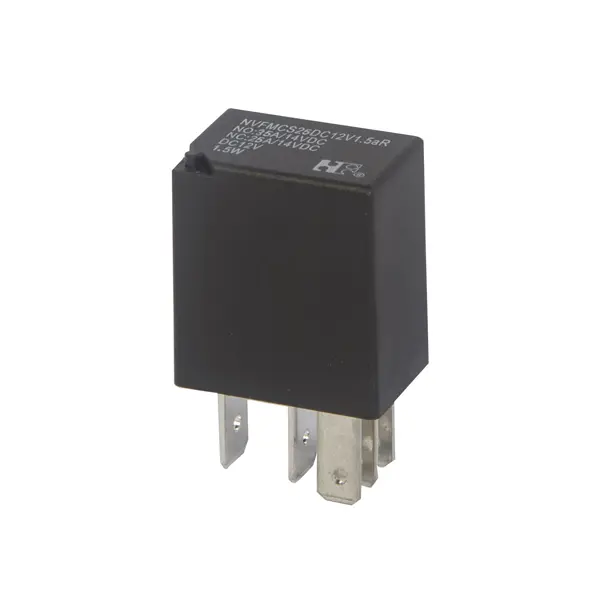

Micro ISO Automotive Relay

Model:NVFM

● 35A switching capability
● 1 Form A and 1 Form C contact arrangement
● Wide temperature range : -40°C to 125° C Plug in or PCB terminals
● Plastic sealed and fluxed proofed types availalbe
● RoHS Compliant

CAD

Send Inquiry PDF DownLoad

Product Description

Features

Switching capacity up to 35A.

PC board mounting and insert mounting available.

Suitable for automation system and automobile auxiliary etc.

Ordering Information

1 Part number: NVFM

2 Contact arrangement: A:1A (1.2W) C:1C(1.5W)

3 Enclosure: S: Wash tight ;Z: Flux proof

4 Contact current: 25A:NO:35A/14VDC NC:25A/14VDC
20A:NO:25A/14VDC NC:20A/14VDC

5 Coil rated voltage(V): DC:6,12,24,48

6 Coil power: 1.2:1.2W 1.5:1.5W

7 Terminals a: plug in type b:PCB type

8 Coil transient suppression: D: with diode
R: with resistance
NIL: standard

Contact Data

Contact Arrangement		1A(SPSTNO) 1C(SPDT(B-M))
Contact Material		AgSnO₂
Contact Rating (Resistive)		NO:25A/14VDC, NC:20A/14VDC
		NO:35A/14VDC, NC:25A/14VDC
Max. Switching Power		490W
Max. Switching Voltage		30VDC	Max. Switching Current :35A
Voltage Drop(Intial)		Typ. 50mV (at 10A)	Item 4.12 of IEC 61810-7
Operation	Electrical	1×10⁵	Item 4.30 of IEC 61810-7
Life	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
006-1200	6	7.8	30	4.2	0.6	1.2	≤10	≤7
012-1200	12	15.6	120	8.4	1.2
024-1200	24	31.2	480	16.8	2.4
048-1200	48	62.4	1920	33.6	4.8
006-1500	6	7.8	24	4.2	0.6	1.5	≤10	≤7
012-1500	12	15.6	96	8.4	1.2
024-1500	24	31.2	384	16.8	2.4
048-1500	48	62.4	1536	33.6	4.8

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts	50Hz 500V	Item 4.9 of IEC 61810-7
Between Contact and Coil	50Hz 1000V	Item 4.9 of IEC 61810-7
Shock Resistance	98/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~40Hz Double amplitude 1.27mm	Item 4.28 of IEC 61810-7
Terminals Strength	100N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40 ℃ ~125 ℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	18.5g	Item 4.7 of IEC 61810-7

Note:

1) When testing, coil terminals should be connected, if coil transient suppression is installed in relay .

Dimensions(mm)

CAUTION

1).It is based on customer demand to have lead pin hole or not.

2).In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.

Reference Data
