Small size, light weight and heavy switching power.
20A switching capability. TV-12 switching capability.
3kV dielectric strength between the coil and contact.
Product in accordance to IEC60335-1 available.
Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application.
TV remote control TV receivers, monitor display, audio equipment high and rushing current application.

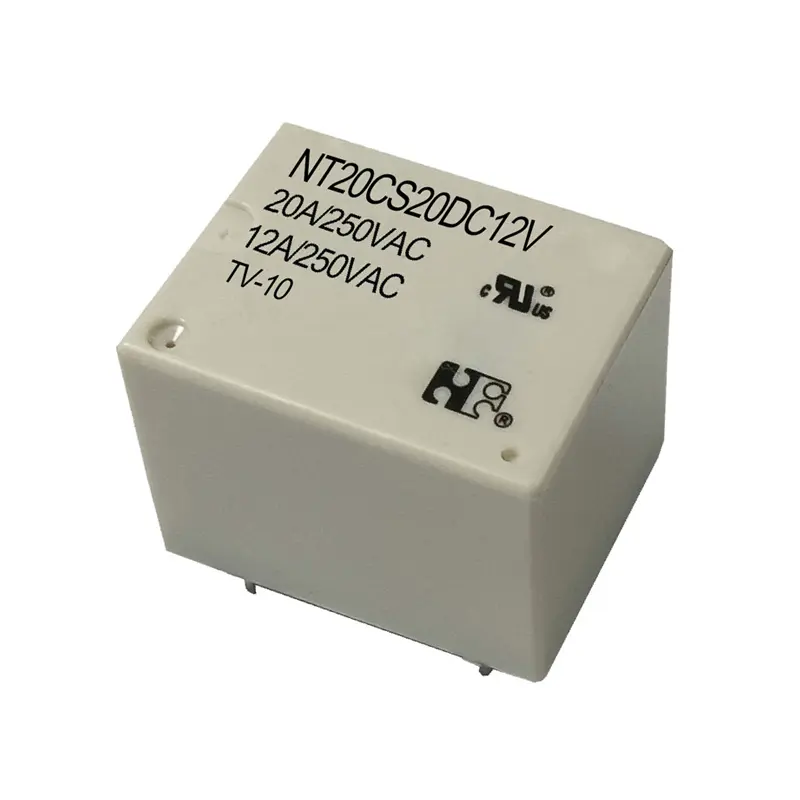

1 Part number: NT20
2 Nil:Standard; W: Wide terminal
3 Contact arrangement: A:1A; C:1C
4 Enclosure: S: Wash tight; F: Flux proof
5 Contact rating: 16:16A/250VAC; 20:20A/250VAC;10:10A/250VAC
6 Coil power: NIL:0.36W; L:0.2W
7 Coil rated voltage(V): DC:3,5,6,9,12,24,48
| Contact Arrangement | 1A(SPSTNO)1C(SPDT(B-M)) | ||
| Contact Material | AgSnO₂ | ||
| 0.36W | 0.2W | ||
| Contact Rating |
NO:20A,16A/250VAC;10A/28VDC NC:12A/250VAC;7A/28VDC 1%HP 250VAC TV-10240VAC |
NO:10A/250VAC NC:7A/250VAC |
|
| Max.Switching Power | 280W 5000VA | ||
| Max.Switching Voltage | 28VDC277VAC Max.Switching Current:20A | ||
| Contact Resistance | ≤100m Q Item 4.12 of IEC61810-7 | ||
|
Operational Life |
Electrical |
0.36W:NO:20A/250VAC 85℃ 5×10⁴ 16A/250VAC 105℃ 1×10⁵ 10A/28VDC 105℃ 2×10⁴ NC:12A/250VAC105℃6×10³ 7A/28VDC105℃ 2×10⁴ Item 4.30 of IEC61810-7 0.2W:NO:10A/250VAC 105℃ 1×10⁵ NC:7A/250VAC 105℃1×10⁵ 1%HP 250VAC 40℃ 6×10³ TV-10240VAC 40℃ 2.5×104 |
|
| Mechanical | 1×10 Item 4.31 of IEC61810-7 | ||
|
Dash numbers |
Coil voltage VDC |
Coil resistance Q±10% |
Pick-up voltage VDC(max) (75%of rated voltage) |
Drop-out voltage VDC(min) (10%of rated voltage) |
Coil power W |
Operate time ms |
Release time ms |
|
|
Rated |
Max. |
|||||||
|
003-200 005-200 006-200 009-200 012-200 024-200 048-200 |
3 5 6 9 12 24 48 |
3.9 6.5 7.8 11.7 15.6 31.2 62.4 |
45 125 180 405 720 2880 11520 |
2.25 3.75 4.50 6.75 9.00 18.0 36.0 |
0.3 0.5 0.6 0.9 1.2 2.4 4.8 |
0.2 |
≤10 |
≤5 |
|
003-360 005-360 006-360 009-360 012-360 024-360 048-360 |
3 5 6 9 12 24 48 |
3.9 6.5 7.8 11.7 15.6 31.2 62.4 |
25 69.4 100 225 400 1600 6400 |
2.25 3.75 4.50 6.75 9.00 18.0 36.0 |
0.3 0.5 0.6 0.9 1.2 2.4 4.8 |
0.36 |
≤10 |
≤5 |
|
Insulation Resistance |
100MQ min(at 500VDC) |
Item 4.11 of IEC61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 1000V 50Hz 3000V |
Item 4.9 of IEC61810-7 Item 4.9 of IEC61810-7 |
|
Shock Resistance |
98m/s² 11ms |
Item 4.26 of IEC61810-7 |
|
Vibration Resistance |
10Hz~55Hz Double amplitude 1.5mm |
ltem 4.28 ofIEC61810-7 |
|
Terminals Strength |
10N |
Item 4.24 of IEC61810-7 |
|
Ambient Temperature |
-40℃~105℃ |
|
|
Relative Humidity |
5%~85% |
Item 4.16 of IEC61810-7 |
|
Mass |
12g |
Item 4.7 of IEC61810-7 |
|
Safety approval |
UL&CUR |
VDE |
CQC |
|
Load |
NO:20A250VAC85℃,16A/250VAC 105℃,10A/28VDC 105℃ 1%HP 250VAC;TV-10240VAC40℃ NC:12A,10A/250VAC 105℃,7A/28VDC 105℃ |
NO:20A/250VAC 85℃ NO:16A/250VAC105℃ NC:12A/250VAC 105℃ |
NO:20A/250VAC85℃ NO:16A/250VAC 105℃ NC:12A/250VAC 105℃ |
CAUTION:
In case of no tolerance shown in outline dimension: outline dimension ≤1mm,tolerance should be±0.2mm ; outline dimension >1mm and ≤5mm, tolerance should be±0.3mm; outline dimension >5mm, tolerance should be±0.4mm.
