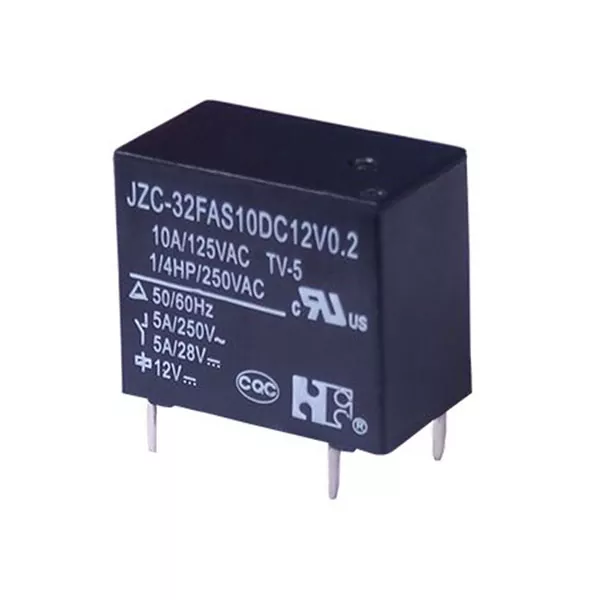

Miniature PCB Relay 5A/250VAC

Model:JZC-32F

● 5A switching capability
● 450mW and 200mW coil available
● Plastic sealed and flux proofed types available
● 1 Form A and 1 Form C contact arrangement
● RoHS Compliant

CAD

Send Inquiry PDF DownLoad

Product Description

Features

5A 10A switching capabilities.

SPSTNO and SPDT(B-M) configurations.

Subminiature, standard PC layout.

Ordering Information

1 Part number JZC-32F

2 Contact arrangement A:1A C:1C

3 Enclosure S:Wash tight Z: Flux proof

4 Contact current 5A,10A

5 Coil rated voltage (V) DC:3,5,6,9,12,18,24

6 Coil power 0.2:0.2W 0.45:0.45W

Contact Data

Contact Arrangement		1A (SPSTNO) 1C (SPDT (B-M))
Contact Material		Ag Alloy
Contact Rating(Resistive)		5A/250VAC,28VDC;10A/125VAC;4.2A/277VAC Motor load:1/4HP 277VAC,250VAC,240VAC,120VAC TV-5 120VAC
Max. Switching Power		150W 1250VA
Max. Switching Voltage		30VDC 277VAC	Max. Switching Current:10A
Contact Resistance		≤100mΩ	Item4.12 of IEC61810-7
Operational Life	Electrical	1×10⁵	Item 4.30 of IEC 61810 -7
	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

CAUTION:

1) 1.For the intermediate current, it only applies to the room temperature.

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC (max) (75% of rated voltage )	Drop-out voltage VDC (min) (5% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max	Coil resistance Ω±10%	Pick-up voltage VDC (max) (75% of rated voltage )	Drop-out voltage VDC (min) (5% of rated voltage)	Coil power W	Operate time ms	Release time ms
003-200	3	3.9	45	2.25	0.15	0.20	≤8	≤5
005-200	5	6.5	125	3.75	0.25
006-200	6	7.8	180	4.50	0.30
009-200	9	11.7	405	6.75	0.45
012-200	12	15.6	720	9.00	0.60
018-200	18	23.4	1620	13.5	0.90
024-200	24	31.2	2880	18.0	1.20
003-450	3	3.9	20	2.25	0.15	0.45	≤8	≤5
005-450	5	6.5	56	3.75	0.25
006-450	6	7.8	80	4.50	0.30
009-450	9	11.7	180	6.75	0.45
012-450	12	15.6	320	9.00	0.60
018-450	18	23.4	720	13.5	0.90
024-450	24	31.2	1280	18.0	1.20

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Contacts	50Hz 1500V	Item 4.9 of IEC 61810-7
Between Contact and Coil	50Hz 2500V	Item 4.9 of IEC 61810-7
Impulse Withstand Voltage (Between Contact and Coil)	8kV	Item 4.10 of IEC 61810-7
Clearance/Creepage	6.4mm/8.0mm
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	6g	Item 4.7 of IEC 61810-7

Safety Approvals

Safety approval	UL&CUR	TüV	CQC
Load	10A/125VAC 5A/250VAC 4.2A/277VAC TV-5 120VAC 1/4HP/277VAC 250VAC 240VAC 120VAC	5A/250VAC,28VDC	5A/250VAC

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
