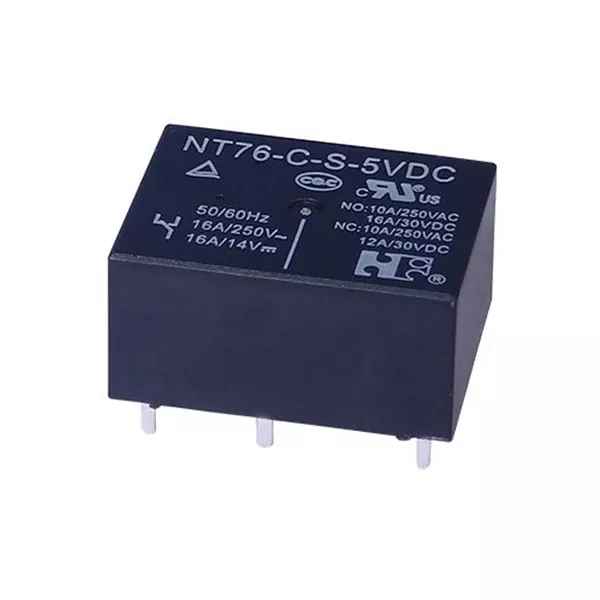

16A Subminiature Power PCB Relay

Model:NT76

● 16A switching capability
● High sensitivity
● Low height:11mm
● 1 Form A and 1 Form C contact arrangement
● Plastic sealed and flux proofed types available
● RoHS Compliant

CAD

Send Inquiry PDF DownLoad

Product Description

Features

Super light in weight.

High sensitivity.

Switching capacity up to 16A.

PC board mounting.

Ordering Information

1 Part number NT76

2 Contact arrangement A:1A C:1C

3 Enclosure S: Wash tight Z: Flux proof

4 Coil rated voltage(V) DC:5,6,9,12,18,24,48

Contact Data

Contact Arrangement		1A(SPSTNO) 1C(SPDT(B-M))
Contact Material		AgSnO₂
Contact Rating(Resistive)		NO:16A/250VAC, 30VDC; NC:10A/250VAC,30VDC
Max. Switching Power		480W 4000VA
Max. Switching Voltage		30VDC 277VAC	Max. Switching Current: 15A
Contact Resistance		≤50mΩ	Item4.12 of IEC61810-7
Operational Life	Electrical	1×10⁵	Item 4.30 of IEC 61810 -7
	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

CAUTION:

1) For the intermediate current, it only applies to the room temperature.

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC(max) (75%of rated voltage )	Drop-out voltage VDC(min) (5% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (75%of rated voltage )	Drop-out voltage VDC(min) (5% of rated voltage)	Coil power W	Operate time ms	Release time ms
1A
005-200	5	6.5	125	3.75	0.25	0.20	≤10	≤5
006-200	6	7.8	180	4.50	0.30
009-200	9	11.7	405	6.75	0.45
012-200	12	15.6	720	9.00	0.60
018-200	18	23.4	1620	13.5	0.90
024-200	24	31.2	2880	18.0	1.20
1C
005-450	5	6.5	56	3.75	0.25	0.45	≤10	≤5
006-450	6	7.8	80	4.50	0.30
009-450	9	11.7	180	6.75	0.45
012-450	12	15.6	320	9.00	0.60
018-450	18	23.4	720	13.5	0.90
024-450	24	31.2	1280	18.0	1.20
048-450	48	52.8	5120	38.4	2.40

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Contacts	50Hz 750V	Item 4.9 of IEC 61810-7
Between Contact and Coil	1C:50Hz 1500V;1A:50Hz 2500V	Item 4.9 of IEC 61810-7
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	10g	Item 4.7 of IEC 61810-7

Safety Approvals

Safety approval	UL&CUR	TüV	CQC
Load	1A 16A/250VAC 1C 10A/250VAC	16A/250VAC,14VDC	16A/250VAC

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
