Small size, light weight , low coil power consumption.
Switching capacity can reach 32A/277VAC.
High dielectric strength.
Contact gap 2.1mm.
PC board mounting is available.
High-performance power relay, suitable for photovoltaic systems (solar-inverters), automotive applications, motor control,
compressor control, and home appliances.

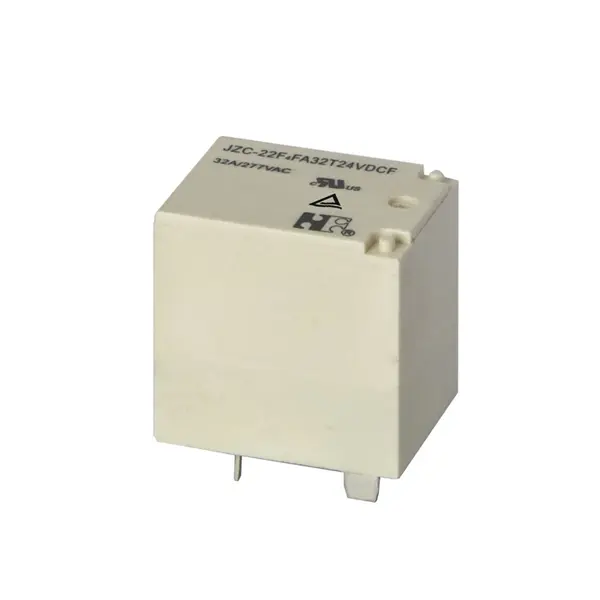

1 Part number: JZC-22F4
2 Enclosure: S: Wash tight F: Flux proof
3 Contact arrangement: A:1A
4 Contact rating: 32A/277VAC
5 Coil power: T:2.8W
6 Coil rated voltage(V): DC:9,12,24
7 Resist heat class: NIL Standard ;F:155
| Contact Arrangement | 1A(SPSTNO) | ||
| Contact Material | AgSnO2 | ||
| Contact Rating(Resistive) |
32A/277VAC |
||
| Max. Switching Power | 8864VA | ||
| Max. Switching Voltage | 400VAC | Max. Switching Current: 32A | |
| Contact Resistance | ≤100mΩ | Item 4.12 of IEC61810-7 | |
| Operational Life | Electrical |
1×105 |
Item 4.30 of IEC 61810 -7 |
| Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
CAUTION:
1) For the intermediate current, it only applies to the room temperature.
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC(max) (75% of rated voltage ) | Drop-out voltage VDC(min) (5% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
|
009-2800 |
9 |
11.7 |
28.9 |
6.75 |
0.45 | 2.8 | ≤15 | ≤10 |
| 012-2800 | 12 | 15.6 | 51.4 | 9.00 | 0.6 | |||
| 024-2800 | 24 | 31.2 | 205.7 | 18.0 | 1.2 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
3.Coil holding voltage is 36% of nominal voltage after applying nominal voltage for 200 ms.
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts |
50/60Hz 2000V 1min |
Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50/60Hz 4000V 1min | Item 4.9 of IEC 61810-7 |
| Shock Resistance | Functional: 98m/s² | Item 4.26 of IEC 61810-7 |
| Destructive: 980m/s² | ||
| Vibration Resistance | Functional: 10Hz~55Hz Double amplitude 1.0mm | Item 4.28 of IEC 61810-7 |
| Destructive: 10Hz~55Hz Double amplitude 1.0mm | ||
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃~105℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 16g | Item 4.7 of IEC 61810-7 |
| Safety approval | UL&CUR |
| Load | 32A/277VAC |
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
