Small size, light weight .
Low coil power consumption.
Switching capacity can reach 20A.
High dielectric strength. PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application. TV-5 TV-8 Remote control TV receivers, monitor display, audio equipment high and rushing current application.

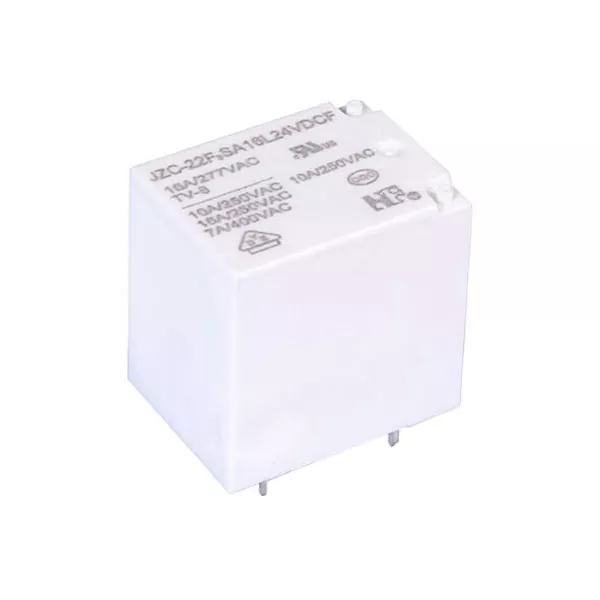

1 Part number: JZC-22F3
2 Terminal: NIL:Standard D:double terminals D1:double terminals(without pin 7)
3 Enclosure: S: Wash tight; F: Flux proof
4 Contact arrangement: A:1A B:1B C:1C
5 Contact rating: 12A,15A,20A/125VAC 28VDC;7A/400VAC; 5A,10A,16A/250VAC 16A/277VAC
6 Coil power: L:0.36W D:0.45W
7 Coil rated voltage(V): DC:3,5,6,9,12,24,48 8 Resist heat class B:130℃ F:155℃
| Contact Arrangement | 1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M)) | ||
| Contact Material | AgSnO2 | ||
| Contact Rating(Resistive) |
5A,7A,12A,15A,20A/125VAC,28VDC; 16A/277VAC;7A/400VAC |
||
| Max. Switching Power | 560W 4450VA | ||
| Max. Switching Voltage | 30VDC 400VAC | Max. Switching Current: 20A | |
| Contact Resistance | ≤100mΩ | Item 4.12 of IEC61810-7 | |
| Operational Life | Electrical |
1×105 |
Item 4.30 of IEC 61810 -7 |
| Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
CAUTION:
1) For the intermediate current, it only applies to the room temperature.
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC(max) (75% of rated voltage ) | Drop-out voltage VDC(min) (10% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
| 003-360 | 3 | 3.9 | 25 | 2.25 | 0.3 | 0.36 | ≤15 | ≤5 |
| 005-360 | 5 | 6.5 | 69.4 | 3.75 | 0.5 | |||
| 006-360 | 6 | 7.8 | 100 | 4.50 | 0.6 | |||
|
009-360 |
9 |
11.7 |
225 |
6.75 |
0.9 | |||
| 012-360 | 12 | 15.6 | 400 | 9.00 | 1.2 | |||
| 024-360 | 24 | 31.2 | 1600 | 18.0 | 2.4 | |||
| 048-360 | 48 | 62.4 | 6400 | 36.0 | 4.8 | |||
| 003-450 | 3 | 3.9 | 20 | 2.25 | 0.3 | 0.45 | ≤15 | ≤5 |
| 005-450 | 5 | 6.5 | 55.5 | 3.75 | 0.5 | |||
| 006-450 | 6 | 7.8 | 80 | 4.50 | 0.6 | |||
| 009-450 | 9 | 11.7 | 180 | 6.75 | 0.9 | |||
| 012-450 | 12 | 15.6 | 320 | 9.00 | 1.2 | |||
| 024-450 | 24 | 31.2 | 1280 | 18.0 | 2.4 | |||
| 048-450 | 48 | 62.4 | 5120 | 36.0 | 4.8 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts |
50Hz 1000V |
Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 2500V Surge Voltage:4000V | Item 4.9 of IEC 61810-7 |
| Shock Resistance | 98m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~55Hz Double amplitude 1.5mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃~105℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 14g | Item 4.7 of IEC 61810-7 |
| Safety approval | UL&CUR | VDE | CQC |
| Load |
16A/277VAC; 20A/125VAC ;10A/250VAC TV-8 125VAC NO:1HP(16FLA) 125VAC,(8FLA)250VAC; NC: 1/2HP(9.8FLA) 125VAC,(4.9FLA)250VAC |
10A,16A/250VAC 7A/400VAC |
10A/250VAC |
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
