Small size, light weight .
Low coil power consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application. TV-5 remote control TV receivers, monitor display, audio equipment high and rushing current application.

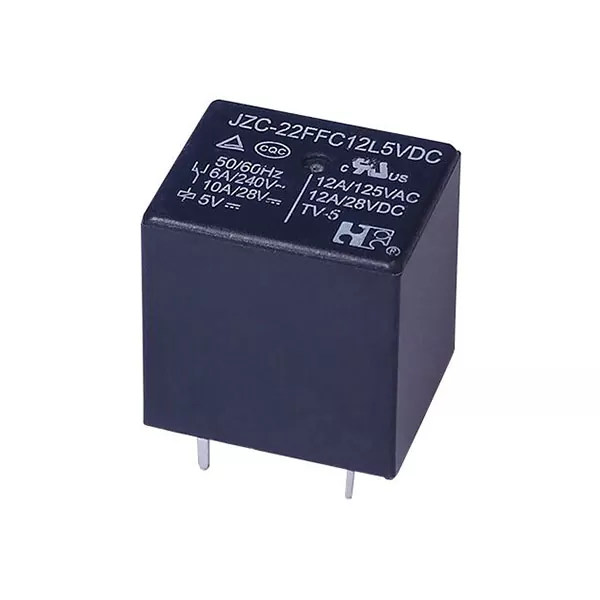

1 Part number: JZC-22F
2 Enclosure: S:Wash tight; F:Flux proof
3 Contact arrangement: A:1A B:1B C:1C
4 Contact rating: 5A,7A,12A,15A/125VAC 28VDC; 3A,6A,7A/220VAC 6A/250VAC
5 Coil power: L:0.36W D:0.45W
6 Coil rated voltage(V): DC:3,5,6,9,12,24,48
| Contact Arrangement | 1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M)) | ||
| Contact Material | AgSnO2 AgCdO | ||
| Contact Rating(Resistive) |
5A,7A,12A,15A/125VAC,28VDC; 3A,6A,7A/220VAC ;6A/250VAC TV-5,120VAC,240VAC |
||
| Max. Switching Power | 420W 1875VA | ||
| Max. Switching Voltage | 30VDC 277VAC | Max. Switching Current: 15A | |
| Contact Resistance | ≤100mΩ | Item 4.12 of IEC61810-7 | |
| Operational Life | Electrical |
1×105 |
Item 4.30 of IEC 61810 -7 |
| Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
CAUTION:
1) For the intermediate current, it only applies to the room temperature.
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC(max) (75% of rated voltage ) | Drop-out voltage VDC(min) (10% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
| 003-360 | 3 | 3.9 | 25 | 2.25 | 0.3 | 0.36 | ≤15 | ≤5 |
| 005-360 | 5 | 6.5 | 69.4 | 3.75 | 0.5 | |||
| 006-360 | 6 | 7.8 | 100 | 4.50 | 0.6 | |||
|
009-360 |
9 |
11.7 |
225 |
6.75 |
0.9 | |||
| 012-360 | 12 | 15.6 | 400 | 9.00 | 1.2 | |||
| 024-360 | 24 | 31.2 | 1600 | 18.0 | 2.4 | |||
| 048-360 | 48 | 62.4 | 6400 | 36.0 | 4.8 | |||
| 003-450 | 3 | 3.9 | 20 | 2.25 | 0.3 | 0.45 | ≤15 | ≤5 |
| 005-450 | 5 | 6.5 | 55.5 | 3.75 | 0.5 | |||
| 006-450 | 6 | 7.8 | 80 | 4.50 | 0.6 | |||
| 009-450 | 9 | 11.7 | 180 | 6.75 | 0.9 | |||
| 012-450 | 12 | 15.6 | 320 | 9.00 | 1.2 | |||
| 024-450 | 24 | 31.2 | 1280 | 18.0 | 2.4 | |||
| 048-450 | 48 | 62.4 | 5120 | 36.0 | 4.8 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts |
50Hz 750V |
Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 1500V 50Hz | Item 4.9 of IEC 61810-7 |
| Shock Resistance | 98m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~55Hz Double amplitude 1.5mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃~70℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 13g | Item 4.7 of IEC 61810-7 |
| Safety approval | UL&CUR | TüV | CQC |
| Load |
15A/125VAC,28VDC TV-5 ,120VAC, 240VAC |
6A/240VAC 10A/28VDC |
6A/250VAC |
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
