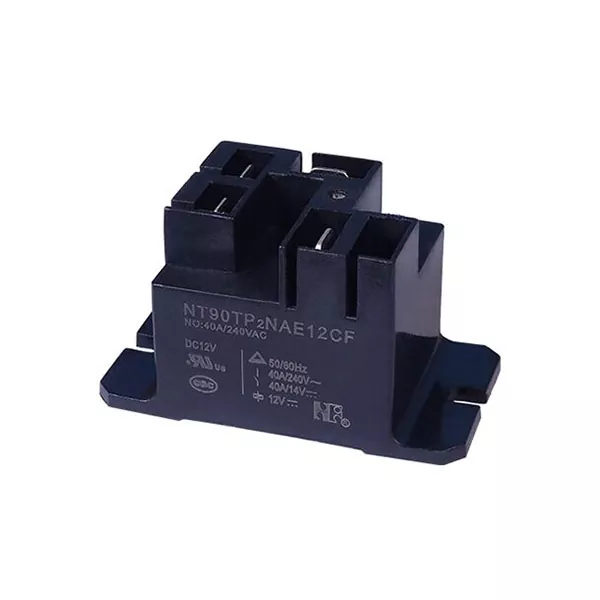

Miniature High Power Relay With Flanged Mounting

Model:NT90TP

● 40A switching capability
● QC terminals
● Low coil power consumption
● Heavy contact load
● Strong anti-shock, anti-vibration and high reliability
● RoHS Compliant

CAD

Send Inquiry PDF DownLoad

Product Description

Features

Small size, light weight.

Low coil power consumption, heavy contact load.

Strong anti-shock and anti-vibration, high reliability, long life.

Suitable for automobile, machine, electronic equipment, air conditioner and household appliances applications.

Ordering Information

1 Part number: NT90TP, NT90TP2

2 Load: H:30A N:40A

3 High: NIL: Standard L: Low profile type

4 Contact arrangement: A:1A B:1B C:1C

5 Enclosure: D: Dust protected E: Flux proof

6 Coil rated Voltage(V:) AC:12,24, 110,120,220,240,277; DC:3,5,6,9,12,15,18,24,36,48,110

7 Contact material: S:AgSnO2 C: AgCdO

8 Resist heat class: B:130 F:155

9 Coil power: 0.6:0.6W 0.9:0.9W 2:2VA

Contact Data

Contact Arrangement	1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M))
Contact Material	AgSnO2 AgCdO
Contact Rating	NO: 30A/240VAC,14VDC; NC:20A/240VAC;30A/14VDC NO: 40A/240VAC,30VDC; NC:30A/240VAC,30VDC (0.9W) NO: 30A/277VAC; NC:20A/277VAC Motor load: NO:2HP 250VAC; NC:11/2HP 250VAC 5A/280VAC(Ballast) TV-5
Max.Switching Power	1200W 10000VA
Max.Switching Voltage	30VDC 280VAC Max. Switching Current:40A
Contact Resistance	≤30mΩ Item 4.12 ofIEC 61810-7
Electrical Endurance	1x105 Item 4.30 of IEC 61810-7
Mechanical Endurance	1x10 Item 4.31 of IEC 61810-7

Coil Parameter

AC Coil Parameter
Dash numbers	Coil voltage VAC		Rated current mA	Coil resistance Ω±10%	Pick-up voltage VAC(max) (75%of rated voltage)	Drop-out voltage VAC(min) (30%of rated voltage)	Coil power VA	Operate time ms	Release time ms
Dash numbers	Rated	Max	Rated current mA	Coil resistance Ω±10%	Pick-up voltage VAC(max) (75%of rated voltage)	Drop-out voltage VAC(min) (30%of rated voltage)	Coil power VA	Operate time ms	Release time ms
012AC	12	15.6	166.6	27	9	3.6	2	____	____
024AC	24	31.2	83.3	120	18	7.2
110AC	110	143	18.1	2360	82.5	33.0
120AC	120	156	16.6	3040	90	36.0
220AC	220	286	9.1	13490	165	66.0
240AC	240	312	8.3	15740	180	72
277AC	277	360.1	7.2	20300	207.8	83.1

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Coil Parameter

DC Coil Parameter
Dash numbers	Coil voltage V		Coil resistance Ω±10%	Pick-up voltage VDC(max) (75% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (75% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
003-900	3	3.9	10	2.25	0.3	0.9	≤15	≤10
005-900	5	6.5	28	3.75	0.5
006-900	6	7.8	40	4.50	0.6
009-900	9	11.7	90	6.75	0.9
012-900	12	15.6	160	9.00	1.2
015-900	15	19.5	250	10.25	1.5
018-900	18	23.4	360	13.50	1.8
024-900	24	31.2	640	18.00	2.4
036-900	36	46.8	1440	27.00	3.6
048-900	48	62.4	2560	36.00	4.8
110-900	110	143	13445	82.50	11.0

003-600	3	3.9	15	2.25	0.3	0.6	≤15	≤10
005-600	5	6.5	42	3.75	0.5
006-600	6	7.8	60	4.50	0.6
009-600	9	11.7	135	6.75	0.9
012-600	12	15.6	240	9.00	1.2
015-600	15	19.5	375	10.25	1.5
018-600	18	23.4	540	13.50	1.8
024-600	24	31.2	960	18.00	2.4
048-600	48	62.4	3840	36.00	4.8
110-600	110	143	20167	82.50	11.0

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1500V 50Hz 2500V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	Functional: 98m/s² 11ms	tem 4.26 of IEC 61810-7
Shock Resistance	Destructive: 980m/s² 11ms	tem 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-55℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	35g (Low profile type) 37g	Item 4.7 of IEC 61810-7

Safety Approvals

Safety approval	UL&CUR	TüV	CQC
Load	NO:40A/240VAC ;30A/277VAC NC:30A/240VAC,30VDC;20A/277VAC Ballast:5A/280VAC TV-5 NO:2 HP 250VAC A:1HP/16AFLA/120VAC 2HP/12AFLA/240VAC NC:1 HP 250VAC B:30LRA/10AFLA/120VAC 30LRA/10AFLA/240VAC	NO:40A/240VAC, 14VDC 30A/277VAC NC:30A/240VAC ,14VDC 20A/277VAC	NO:40A/240VAC 30A/240VAC NC:30A/240VAC 20A/240VAC

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.

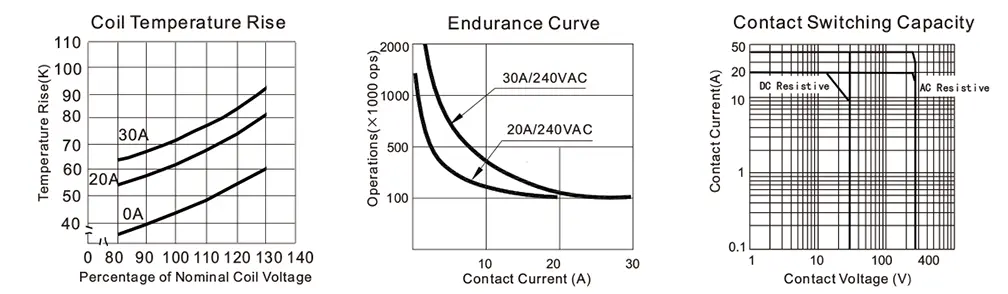

Reference Data
